Popis

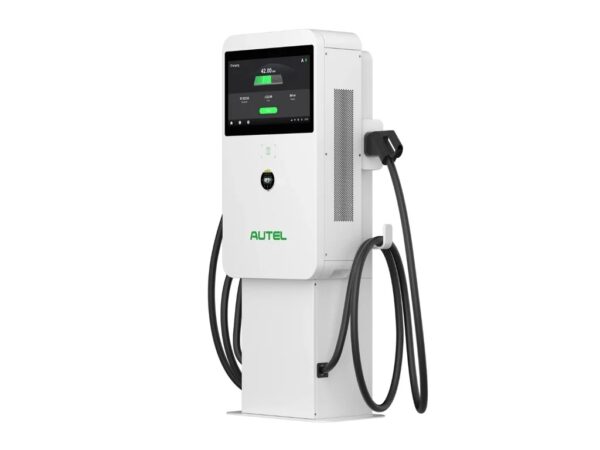

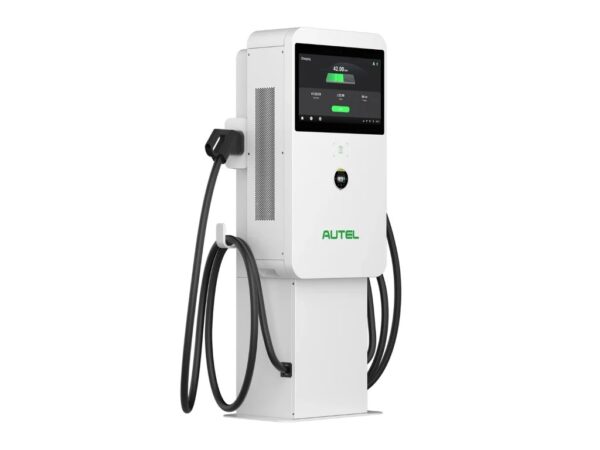

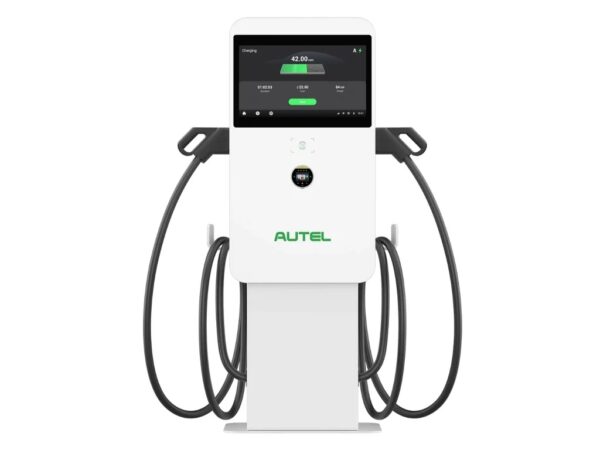

Autel Compact Charger 50kW 2x CCS2 5.5m kábel, RFID/4G/Wifi/ Ethernet, bez platobného terminálu pre verejné nabíjanie

DC Output
Charging mode: Mode 4: CCS2
Output power: Rated power 50kW
Output voltage: 150 – 950V
Max ouput current: CCS2: 133A
Number of outputs:2*CCS2
Peak efficiency: 96%

AC Input

Earthing system: 3P, N, PE
Input voltage: 3-phase 400V AC±10%
Input frequency: 50/60 Hz
Power factor: ≥0.99
Harmonic distortion (THDi): ≤5%

General Characteristics

IP and IK rating: IP54; IK10
Operating altitude: 2000m
Operating temperature range: -30°C ~ +50°C
Mounting: Pedestal, wall mounting or wheels
Dimensions (H×W×D): 1000 × 550 × 265 mm
Screen type: 21.5 inch LCD touch screen (1920*1080)
Cable length: 5.5m standard; 7.5m optional

User Interface

Status indication: LED / LCD / APP
User interface: Autel Charge APP; Autel Charge Cloud
Connectivity: 4G, Wi-Fi, Ethernet
Communication protocols: OCPP 1.6J (Can be upgraded to OCPP 2.0.1 later)
User authentification: APP, RFID card

Certification and Standards

Safety and compliance: IEC 61851-1; IEC 61851-23; IEC 61851-21-2; ISO 15118
EMC compliance: CE, EMC Class A
Warranty: 24 months, warranty extension possible
